Thursday, April 21, 2011

Lync April 2011 Server and Client Updates Released

The Lync team has released server and client updates for April.  The cumulative update is back…see below.  Here are all the details:

Server Updates (7577.139) – DownloadKB2493736

  • Core Components
  • Conferencing Server
  • Web Components Server
  • Standard/Enterprise Edition Server
  • Web Conferencing Server
  • Mediation Server
  • UCMA 3.0 Runtime

Note: Use the cumulative LyncServerUpdateInstaller.exe to install the updates to make sure all needed updates are applied.

Phone Edition Updates

Clients

Group Chat

Monday, April 18, 2011

Office 365 Beta Open to Public

office365logo

Just Announced!  Office 365 Beta has moved from “Limited Beta” status to “Public Beta” status.  This means that anyone can now sign up and test drive Office 365.

Here are some resources to get you started:

To sign up for the Beta, go HERE

Monday, April 11, 2011

Active Directory Federation Services (ADFS) 2.0 with Office 365: Part 2 – Configuring

In Part 1 of this post, we introduced ADFS 2.0 in relation to Office 365 and discussed environmental requirements in implement. Part 2 will actually cover the configuration and validation steps needed to implement ADFS 2.0 with Office 365. Note: this post is based on the Office 365 Beta for Enterprises.

Assumptions:

  • Domain has been added and verified in the Office 365 Admin portal
  • Directory Sync Tool is installed and configured
  • 2 Windows 2008 R2 servers are built and prepared to install ADFS 2.0
    • Internal ADFS server is joined to the domain
    • Proxy ADFS server is not joined to domain and located in perimeter network
  • Necessary firewall ports are open from the Internet to ADFS Proxy server (port 443)
  • Necessary firewall ports are open from ADFS Proxy server to internal ADFS server (port 443)
  • External DNS record has been implemented for ADFS (our example will use sts.UPNdomain.com)

The following steps are used to prepare the environment:

  1. Add UPN Suffix to AD and configure for each user (this is required if your AD is using a non-routable domain internally like .local or .priv)
    • UPNs used for identity federation can only contain letters, numbers, periods, dashes and underscores.
    • Open AD Domains and Trusts tool
    • Right-click AD Domains and Trusts and click Properties
    • On the UPN suffixes tab, type the alternative UPN suffix for the forest and then click Add
    • UPNSuffix
    • Repeat to add additional UPN suffixes
    • Open user properties, navigate to Account Tab.
    • Select the external namespace UPN for the “User logon name”
    • UPN-Account
  2. Create service account for ADFS – this can be a regular Domain User, no special permissions needed.
  3. Add internal ADFS server(s) to AD forest
  4. Download ADFS 2.0 RTW (HERE). During the install process, the following Windows components will be automatically installed:
    • Windows PowerShell
    • .NET Framework 3.5 SP1
    • Internet Information Services (IIS)
    • Windows Identity Foundation
  5. Download Microsoft Online Services Identity Federation Management Tool (32-bit or 64-bit)
  6. (Optional) Install and configure SQL Server 2005 or 2008 if your organization has more than 30,000 users who will use Office 365
  7. Configure external DNS A record for ADFS Proxy (ex. Sts.domain.com)

Now we are ready to install and configure ADFS 2.0 on internal server:

  1. Double-click AdfsSetup.exe (this is the ADFS 2.0 RTW download)
  2. Click Next on the Welcome Screen and Accept the License Agreement
  3. On the Server Role Option screen, select Federation Server
    • ADFS - Role select - ADFS Server - markup
  4. Finish the rest of the wizard, this will install any necessary prerequisites
  5. At the end of the wizard, uncheck box to Start the ADFS 2.0 Management Snap-in
    • ADFS - install - uncheck box - markup
  6. Request and provision public certificate through IIS
    • ADFS - IIS - cert request - markup
  7. Bind certificate to IIS on port 443
    • ADFS - IIS - bind - markup
  8. Configure ADFS utilizing ADFS 2.0 Management
    • ADFS - start management tool
  9. Select ADFS 2.0 Federation Server Configuration Wizard
    • ADFS - management - wizard start - markup
  10. Select Create a new Federation Service
  11. Select New Federation server farm (this is recommended even if you plan on installing only one server in case in the future you want to add another server)
    • ADFS - management - wizard - farm - markup
  12. Select the public certificate and validate the Federation Service name.  This will automatically fill in the name on the certificate Subject Name.  If a wildcard certificate is used, you must enter the name for the Federation Service.
    • ADFS - management - wizard - name - markup
  13. Enter in the service account credentials that were created earlier
    • ADFS - management - wizard - service account - markup
  14. Finish Wizard
  15. Run Office 365 Desktop Setup from portal
  16. Install Identity Federation Management Tool (FederationConfig.msi, use default install parameters)
  17. Enable Identity Federation within Office 365 portal for your domain
  18. Launch the Identity Federation Management Tool
  19. Type $cred=Get-Credential and press Enter
  20. Enter you Microsoft Online Services administrator logon and password and click ok
    • ADFS - Fed tool - creds - markup
  21. Type Set-MSOLContextcredential –msolAdminCredentials $cred –LogFile c:\logfile.log and press enter
  22. Type Add-MSOLFederatedDomain –domainname UPNdomain.com
  23. If prompted that the domain already exists as a standard domain, type Convert-MSOLDomainToFederated –domainname UPNdomain.com
  24. Type Update-MSOLFederatedDomain –domainname UPNdomain.com
  25. Verify Identity Federation Functionality

Install ADFS 2.0 Proxy server

  1. Export public certificate from ADFS internal server and copy to proxy server
  2. Validate DNS resolution of sts.UPNdomain.com resolves to internal ADFS server from ADFS Proxy Server (a HOST file can be used for this if needed)
  3. Validate DNS resolution of sts.UPNdomain.com resolves to external A record from an internet PC
  4. Double-click AdfsSetup.exe (this is the ADFS 2.0 RTW download)
  5. Click Next on the Welcome Screen and Accept the License Agreement
  6. On the Server Role Option screen, select Federation Server Proxy
    • ADFS - Role select - ADFS Proxy Server - markup
  7. Finish the rest of the wizard, this will install any necessary prerequisites
  8. At the end of the wizard, uncheck box to Start the ADFS 2.0 Management Snap-in
    • ADFS - install - uncheck box - markup
  9. Import certificate in IIS and bind certificate to Default Web Site
  10. Configure ADFS proxy by selecting ADFS 2.0 Federation Server Proxy Configuration Wizard
    • Enter the federation namespace (ex. Sts.UPNdomain.com)
    • Test connection
    • adfs - proxy - wiz - test conn - markup
    • Service account credentials
  11. Finish Wizard
  12. Log into portal with UPN credentials.  Note that once the UPN login is entered, the password field is grayed out and a link activates to log into the ADFS server
    • ADFS - portal - signin - markup

Hopefully this will help you navigate the ADFS waters in regards to Office 365 Beta.

Wednesday, April 6, 2011

Rereleased: Exchange 2010 SP1 Update Rollup 3

The Exchange Team pulled the initial release of Update Rollup 3 for Exchange 2010 SP1 very soon after its release.  Today they have rereleased Update Rollup 3.

Update Rollup 3 can be downloaded HERE. This will bring your Exchange version to 14.1.289.007.

For a description of the update and all of the included fixes, see KB 2529939

For those of you running DAGs, please see the following article: Applying Updates to Exchange 2010 SP1

If you are running Forefront, it is important to disable Forefront protection during the update:

  • Before running patch: fscutility /disable
  • After running patch: fscutility /enable

Friday, April 1, 2011

Active Directory Federation Services (ADFS) 2.0 with Office 365: Part 1 – Planning

This subject will be looking at what ADFS is, what are the environmental requirements, and how to configure it with Office 365. Note: this post is based on the Office 365 Beta for Enterprises. The post will be split into the following two parts:

Office 365 supports identity federation which allows true single sign-on capabilities. This is achieved through Active Directory Federation Services (ADFS) 2.0. With identity federation, users can enter their Active Directory credentials to access Office 365 services.

An ADFS 2.0 solution consists of the following components:

  • ADFS server(s) (internal network joined to AD forest)
  • ADFS Proxy Server(s) (perimeter network used to support remote users)

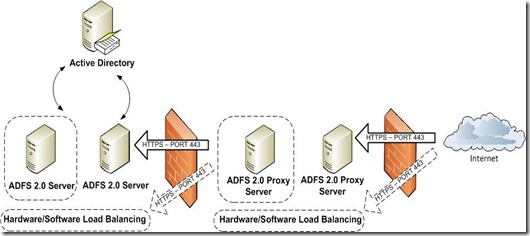

ADFS

There are three basic ADFS 2.0 deployment options for Office 365 with differing levels of access and availability:

  1. Single server configuration
  2. ADFS 2.0 server farm and load-balancer
  3. ADFS 2.0 Proxy server(s) for offsite users

Benefits of implementing ADFS:

  • Improves user productivity by enabling true single sign-on to domain joined computers
  • Reduces usability issues by allowing users to use AD credentials to access all Office 365 services and not have to remember two identities and two passwords
  • Allows administrators the ability to enforce the organization’s password policies and account restrictions in both the on-premises and cloud-based organizations
  • Increases security of AD credentials since passwords are never synced to the cloud, all authentication happens on-premises
  • Reduces overall administration time and costs associated due to the above points

The following are different sign-on experiences when using Federated Identity depending on location and status of computer:

Environment Sign-in Experience
Outlook 2010 on Windows 7 No prompt***
Outlook 2007 on Windows 7 Sign in each session*
Outlook 2010/2007 on Windows Vista or XP Sign in each session**
Exchange ActiveSync Sign in each session**
POP, IMAP Sign in each session**
Web Experiences: Office 365 Portal, Outlook Web App, SharePoint Online, Office Web Apps No prompt
Office 2010/2007 using SharePoint Online No prompt
Lync Online No prompt
Outlook for Mac 2001 Sign in each session**

* – Outlook 2007 will be updated after Office 365 has been made generally available to have same experience as Outlook 2010 on Windows 7

** – When first prompted, you can save your password for future use.  You will not receive another prompt until you change the password

*** – In beta period, you will be prompted when first accessing the services

Authentication Mechanisms when using Federated Identity:

Application Authentication Mechanism
Web browser Web sign in, WS-Trust and WS-Federation (ADFS 2.0)
Outlook 2010 on Windows 7 Web sign in, WS-Trust and WS-Federation (ADFS 2.0)
Outlook 2007 on Windows 7 Basic over SSL, authenticated via the ADFS 2.0 proxy
Outlook 2010/2007 on Windows Vista and XP Basic over SSL, authenticated via the ADFS 2.0 proxy
Exchange ActiveSync Basic over SSL, authenticated via the ADFS 2.0 proxy
POP/IMAP/SMTP client Basic over SSL, authenticated via the ADFS 2.0 proxy
Lync Online Web sign in, WS-Trust and WS-Federation (ADFS 2.0)

Note that Outlook 2007 is planned to be backported to support WS-Trust and WS-Federation after the beta period.

Two-Factor Authentication can be achieved for Office 365.  The Office 365 Beta Identity Service Description describes the requirements.

The following are requirements of ADFS 2.0:

  • Microsoft Online Services Directory Synchronization tool (DirSync) is installed
  • ADFS servers must have Windows 2008 or Windows 2008 R2 Server operating system installed
  • Client computers must be running the latest updates of Windows 7, Windows Vista, or Windows XP (running the Office 365 Desktop Setup from the Office 365 portal will automatically install necessary updates)
  • Public SSL certificate to secure traffic associated with ADFS
  • Microsoft Online Services Identity Federation Management Tool to establish trust with Office 365

Capacity Planning

When identity federation is enabled and configured in Office 365 there is no fall-back to a different form of authentication if ADFS servers fail. This means that if ADFS servers are not available, users will not be able to authenticate with Office 365 servers. It is very important to configure a highly available ADFS solution utilizing multiple servers and hardware or software load balancing. It is also critical to implement a monitoring solution for the ADFS servers. This includes both the internal ADFS servers and the ADFS proxy servers.

Namespace Planning

ADFS currently only allows for one namespace per ADFS farm/instance. If your company will support multiple namespaces for authentication, you will need to implement an ADFS infrastructure for each. Only internet routable domains that have been validated within Office 365 can be used in an ADFS deployment. If your organization has a non-routable domain for the AD infrastructure (such as .local, .priv, etc), you will need to add a UserPrincipalName (UPN) suffix in AD and configure each user with that UPN suffix (discussed in Part 2).

Summary

Part 1 of this post introduced ADFS 2.0 in relation to Office 365 and discussed environmental requirements required to implement.  Part 2 will walk through the configuration of ADFS 2.0 and Office 365.

References:
